feiyu-tech 41 AP lite flight control for FPV flight on fixed-wing aircrafts

FOB Reference Price:Get Latest Price
$190.00 - $289.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Airplane
Power:
Battery
Radio Control Style:
RC Model
Place of Origin:
Guangxi, China
Brand Name:
feiyu tech
Model Number:
FY-41AP Flight Stabilization System
color:
blak
material:
Aluminum
Style:
Radio Control Toy
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
Packaging Details: Normal package with black aluminium specimen box
Port
shenzhen
Lead Time :
3 days after you payment

Specifications

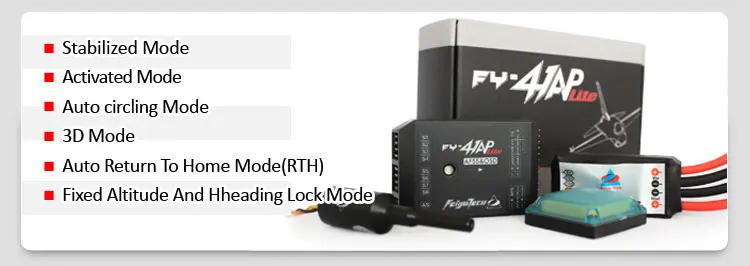

FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts

feiyu-tech 41 AP lite   flight control  for FPV flight on fixed-wing aircrafts

Brief Introduction



FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts. It has an integrated OSD video overlay system that presents critical flight information such as power management, airspeed, altitude, and flight direction via its electronic compass, allowing for a clear visual flight while ensuring key information is within sight.



Flight stabilization is achieved via an integrated 3 axis gyro, 3 axis accelerometer and a barometric pressure sensor. This enables the module to accurately measure flight attitude, earth azimuth & relative altitude to achieve:

        - Extremely stable conventional flight pattern

        - Stabilized 3D flight

        - Automatically return to home (RTL)

        - Fixed altitude flight

        - Heading lock flight

        - Auto circling over a fixed GPS location.







Function Introduction



 Deactivated Mode —— In this mode, the FY-41AP Lite auto stabilization is turned off. The aircraft is completely under pilot control.



Stabilized Mode —— Level flight is automatically maintained, making flight simple, especially for beginners. If a pilot feels the plane is out of control, simply reduce input control and the plane will automatically recover level flight.



3D Mode —— If no input is given by the pilot (all sticks in the middle position), 3D mode will lock the current aircraft attitude. Therefore the aircraft can be easily maneuvered to complete a variety of 3D flight with added stability & smoothness.



 Fixed altitude & Heading lock Mode —— This mode maintains aircraft flight course & holds the altitude on activation. By using GPS data, the system automatically corrects flight course deviation & maintains straight-line flight.



Auto Return To Launch Mode (RTL) —— Upon activation of this Mode, the aircraft will automatically return to the Home point, maintaining its current altitude. Upon reaching the Home point, it will initiate auto circling.



Feiyu tech kindly remind you: You should to do the firmware upgrade separately for FY-41AP Lite control module and OSD module . UART1 is the interface connects to the data radio, computer serial port to do the firmware upgrade for FY-41AP Lite control module.If you want to upgrade the firmware of FY-41AP Lite OSD module,please click on here







OSD Video Overlay System Function



First Person View (FPV) —— FY-41AP Lite has an integrated OSD video overlay system that presents critical flight information on the video for easy enjoy FPV, at the same time, Auto stable, Fixed altitude & Heading lock, Auto Return To Home function will make FPV operation more easy.



OSD is an essential part for FPV. The FY-41AP Lite can adapt both PAL and NTSC video signals. The entire adaptive process is completed approximately within 1 second.



Integrated OSD Video Overlay System, FY-41AP Lite overlays flight telemetry information onto video image. Information displayed includes: Altitude, Speed, Direction, Home Direction and many more.





Feiyu tech kindly remind you: You should to do the firmware upgrade separately for FY-41AP Lite control module and OSD module. UART2 is the interface connects to the computer serial port to do the firmware upgrade for FY-41AP Lite OSD module.

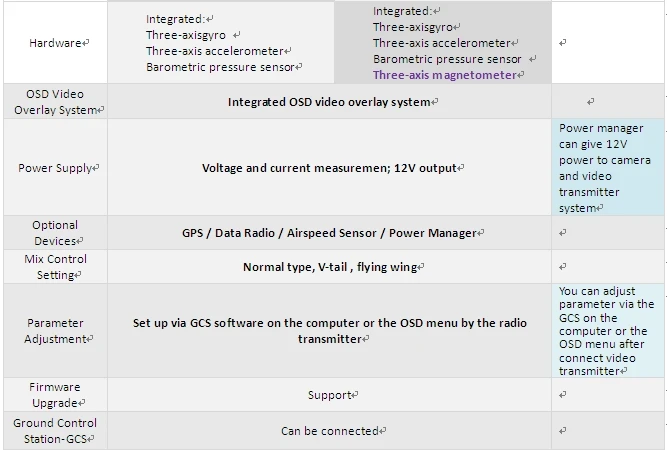

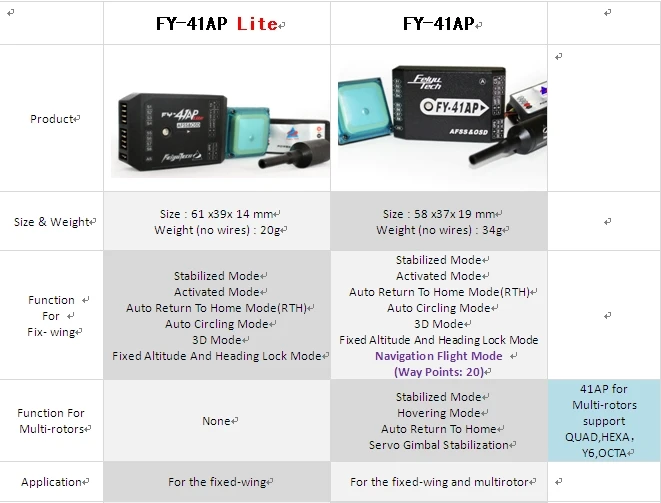

FY-41AP Lite Compared With FY-41AP



more detail  on FY-41AP Lite Compared With FY-41AP



Basic Performance



Supported aircraft:



1, Normal / Traditional fixed-wing planes;



2, Delta-winged plane with rudder;



3, Delta-winged plane without rudder;



4, V-tail plane with aileron;



5, V-tail plane without aileron;







Hardware



FY-41AP Lite: 20g (61×39×14mm);



GPS :24g (32×32×13.5mm);



Air speed senor:9g (64×13.5×13.5mm);



Power Manager:35g(50×24×18mm);

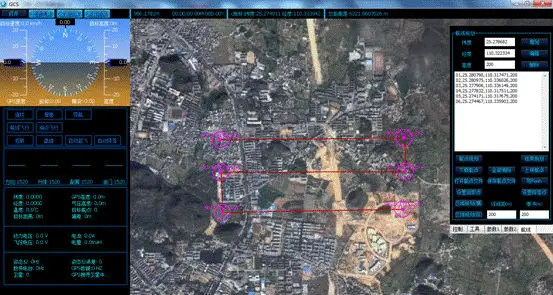

GCS Ground Station Software





GCS ground station software, used to set the flight parameters, mission planning, monitoring in flight. Software integration of electronic map function can through the map software the Google earth live map out into the GCS software. The main function is

    Parameter Settings — Control parameters setting, course setting, etc.

    Real time monitoring — It can monitor flight attitude. And via the GCS software you can change the flight altitude in real time and realize the mouse click flight.

  Record and monitoring flight — You can monitor and download flight path via the GCS software in your computer.

Friendly tip

As  for the shipping way ,We suggest you using DHL . it is faster than EMS, normally it needs 4-7 workdays.while for EMS ,it needs 10-15 workdays,whatever,we will follow you . wish you all the best!



Note:Free shipping cost with UPS and DHL doesn't  include remote region,After you pay, please leave a message to tell us the goods value, if not, we will declare full value, thank you so much!



Any question please  contact  the email :  merry at feiyu-tech.com

or  add the Skype:   fytech01

Thank you for your time!!

Have a nice  life!

merry
